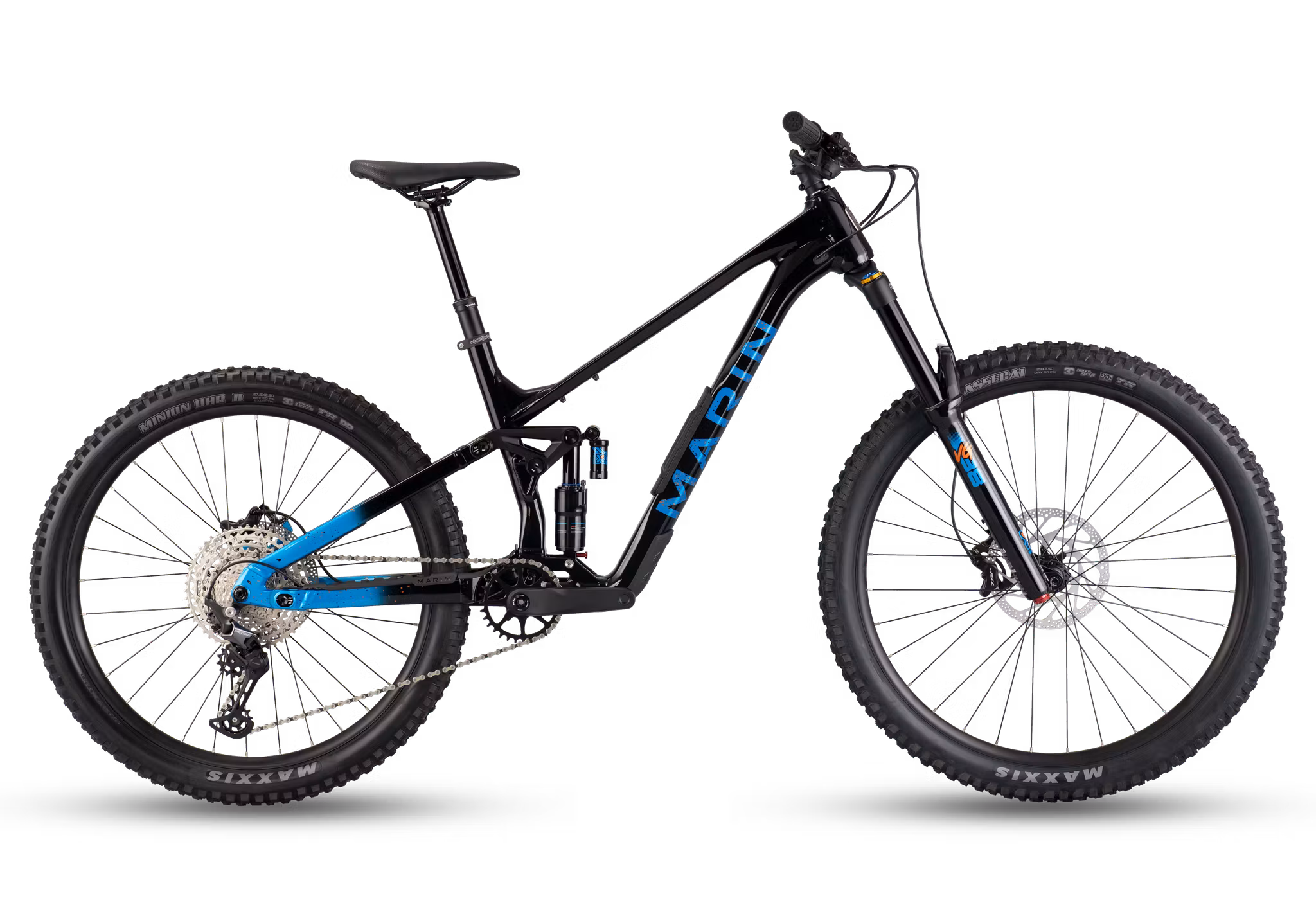

Marin Alpine Trail 1

  • 41 499 kr

The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.Series 4


In stock.
Dela
Artikelnummer: 2345

The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

While the Alpine Trail 1 is the starting point in the three-model lineup, we didn’t make any concessions regarding the spec. High-performance Fox suspension keeps you in control, while a Shimano Deore 12-speed drivetrain transmits your power to the wheel. TRP’s Slate Evo 4-piston brakes feature 203mm rotors, keeping all that speed in check in a powerful, fade-free manner.

SPECIFICATIONS

  • FRAME

    All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

  • FRONT SUSPENSION

    Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset

  • REAR SUSPENSION

    Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune

  • RIM

    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

  • HUB REAR

    Shimano HB-TC500, 148x12mm, Micro Spline Freehub Body

  • HUB FRONT

    Shimano FH-TC500, 110x15mm

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Vee Tire Co. Snap WCE, 29x2.6" Front 27.5x2.6" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible

  • DERAILLEUR REAR

    Shimano Deore, 12-Speed, SGS

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano Deore, 12-Speed, SL-6100-IR

  • CRANKSET

    FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

  • BOTTOM BRACKET

    FSA MegaExo 73mm BSA

  • CHAIN

    KMC X-12 Silver and Black

  • CASSETTE

    Shimano, Deore M6100 12-Speed, 10-51T

  • BRAKES FRONT

    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

  • BRAKES REAR

    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

  • BRAKE LEVERS

    TRP Slate EVO Hydraulic, I-Spec EV Compatible

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin Grizzly Lock-On

  • HEADSET

    FSA Custom, Adjustable HTA Design

  • SEATPOST

    TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

  • SADDLE

    Marin Speed Concept

  • PEDALS

    -

  • EXTRAS

    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

  • EXTRAS

    Downtube Storage Bag

Specifications, pricing, and availability are subject to change without notice.
